- Size: 37m3
- Place of Origin: Shenyang
- Brand Name: N.Traffic
- Model Number: KFM5318TQZ
- Weight: 4880.000 kg

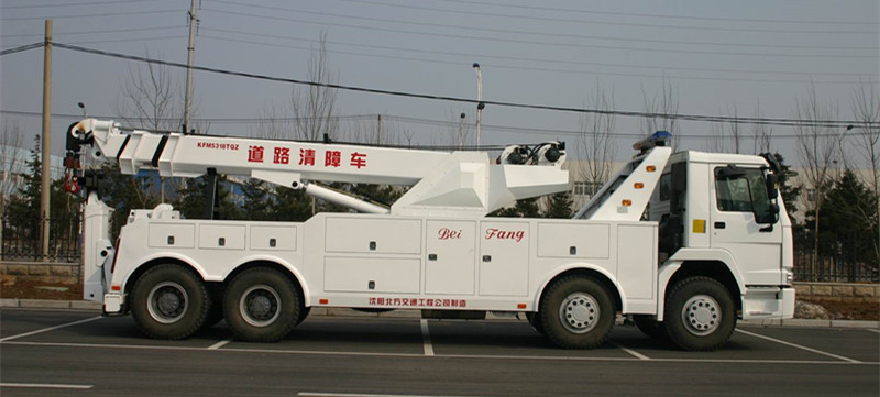

KaiFan Middle-duty H Series (HOWO) Road Wrecker
I.Work Range
KFM5318TQZ Roadwrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
II. Main Parameters
Items | Unit | Value | |
Lifting Structure | Rated Lifting weight | kg | 6350 |
Max. Lifting weight | kg | 9500 | |
Max. Lifting weight of original place | kg | 16000 | |
Max. Lifting weight of full extension boom | kg | 4500 | |
Rated towing weight | kg | 31000 | |
Max. Designed towing weight | kg | 60000 | |
Effective length of boom | mm | 3300 | |
Extension traveling of boom | mm | 1700 | |
Folding angle of boom | ° | 90 | |
Under lift Structure | Max. Rated hanging weight | kg | 20000 |
The height from hook to the ground | mm | 10080 | |
Extension traveling of lifting boom | mm | 3500 | |
Turning angle | ° | 360 | |
Numbers of winch | piece | 2 | |
Rated pulling power of winch | kg | 10000×2 | |
Dia. Of steel cable | mm | 18 | |
Length of steel cable | m | 40 | |
Min. Speed of steel cable | m/min | 7 | |
Rotation angle | ° | 58 | |
Vehicle Parameters | External dimension | mm | 10818×2500×3323 |
Chassis model |
| ZZ1317N4668W | |
Axle base | mm | 1800 ＋ 4600 ＋ 1350 | |
Drive |
| 8×4 | |
The whole weight of empty load | kg | 24520 | |
Load of front axle of empty load | kg | 10950 | |
Load of rear axle of empty load | kg | 13570 | |
The whole weight of full load | kg | 31000 | |
Load of front axle of full load | kg | 6500/7000 | |
Load of rear axle of full load | kg | 17500 | |
Wheel base (front/rear axle) | mm | 2022/1830 | |
Front suspension | mm | 1500 | |
Rear suspension | mm | 880 | |
Approach angle | º | 16 | |
Departure angle | º | 10 | |
Min. Ground clearance | mm | 263 | |
Min. Turning diameter | m | ≤24.6 | |
Grade ability | % | ≥30 | |
Max. Speed | km/h | ≥102 | |
Engine model | - | WD615.95E | |
Rated power | kw | 247 | |
Max. Torque | n·m/r/min | 1420/1100 | |
Fuel type |
| Diesel | |
Standard of emission |
| Euro = 2 \* ROMAN III | |
Tire size |
| 12.00-20(option 11.00-20) | |
Persons |
| 2 | |
