- Size: 37m3
- Place of Origin: Shenyang
- Brand Name: N.Traffic
- Model Number: SQZ1503PQ
- Weight: 4880.000 kg

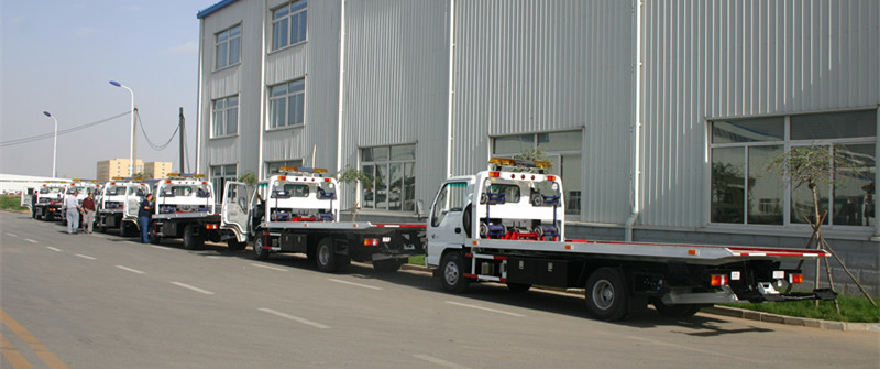

KaiFan Light-duty P Series (ISUZU) Road Wrecker
I.Working Range
KFM5072TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
II. Parameters
Items | Unit | Value | |
Boom Structure | Rated towing weight | kg | 7300 |
Max. Lifting weight | kg | 1500 | |
Max. Lifting weight of full extending boom | kg | 800 | |
Effective length of boom | mm | 1600 | |
Extension traveling of boom | mm | 1200 | |
Elevation of boom (upper/ lower) | ° | 9~-10 | |
Platform Structure | Min. Elevation of full extending platform | ° | 8 |
Max. Loading of platform | kg | 3000 | |
External dimension of platform (length×width×height) | mm | 5400×2140×57 | |
Ground clearance of cage floor | mm | 1014 | |
Max. Pulling power of winch | kg | 4000 | |
Dia. Of steel cable | mm | 10 | |
Length of steel cable | m | 25 | |
Min. Speed of steel cable | m/min | 4.5 | |
Vehicle Parameters | External dimension | mm | 7460×2220×2460 |
Chassis model |
| NKR77PLPACJAY | |
Drive |
| 4×2 | |
Axle base | mm | 3815 | |
The whole weight of empty load | kg | 4170 | |
Load of front axle of empty load | kg | 1620 | |
Load of rear axle of empty load | kg | 2550 | |
The whole weight of full load | kg | 7300 | |
Load of front axle of full load | kg | 1950 | |
Load of rear axle of full load | kg | 5350 | |
Wheel base (front/rear axle) | mm | 1404/1425 | |
Front suspension | mm | 1015 | |
Rear suspension | mm | 2100 | |
Approach angle | º | 24 | |
Departure angle | º | 13 | |
Max. Speed | km/h | ≥95 | |
Max. Grade ability | % | ≥30 | |
Min. Turning diameter | m | 14.1 | |
Min. Ground clearance | mm | 190 | |
Engine model | - | 4KH1-TC | |
Engine emission | ml | 2999 | |
Rated power | kw/r/min | 96/3400 | |
Max. Torque | n·m/r/min | 280/1700 | |
Fuel type |
| 柴油 Diesel | |
Standard of emission |
| 符合欧洲 = 2 \* ROMAN III号标准 EN = 2 \* ROMAN III | |
Tire size |
| 7.50-15,7.00-16 (option 7.50R15,7.00R16) | |
Persons |
| 2 | |
