KaiFan Light-duty P Series (FAW) Road Wrecker

KaiFan Light-duty P Series (FAW) Road Wrecker

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 500 Units per Month
  • Port: China port
  • Payment Terms: L/C,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:1997-05-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  37m3
  • Place of Origin:  Shenyang
  • Brand Name:  N.Traffic
  • Model Number:  SQZ2504PDC
  • Weight: 4880.000 kg

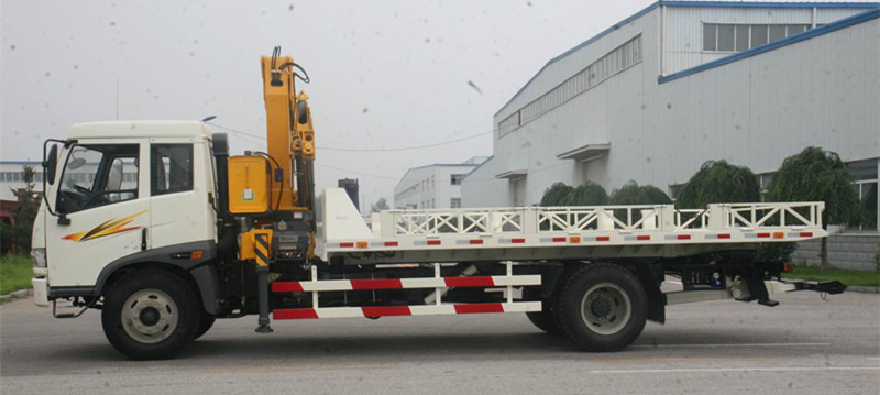

KaiFan Light-duty P Series (FAW) Road Wrecker

I.Work Range

KFM5164TQZ05P Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind

II. Main Parameters

Items

Unit

Value

Boom Structure

Max. Rated towing weight

kg

16000

Max. Lifting weight

kg

2500

Max. Lifting weight of full extending boom

kg

1500

Effective length of boom

mm

1758

Extension traveling of boom

mm

1350

Elevation of boom (upper/ lower)

°

9N 10

Platform Structure

Min. Elevation of full extending platform

°

80/160

Max. Loading of platform

kg

4000

External dimension of platform (length×width×height)

mm

5700×2400×55

Extension traveling of platform

mm

3100

Ground clearance of cage floor

mm

1325

Max. Pulling power of winch

kg

5000

Dia. Of steel cable

mm

12

Length of steel cable

m

25

Min. Speed of steel cable

m/min

7

Vehicle

Parameters

External dimension

mm

9338×2480×3408

Chassis model

CA1163P9K2L4A3E

Drive

4×2

Axle base

mm

5000

The whole weight of empty load

kg

9615

Load of front axle of empty load

kg

4620

Load of rear axle of empty load

kg

4995

The whole weight of full load

kg

16000

Load of front axle of full load

kg

6000

Load of rear axle of full load

kg

10000

Wheel base (front/rear axle)

mm

1810/1800

Front suspension

mm

1330

Rear suspension

mm

2600

Approach angle

º

18

Departure angle

º

11

Min. Turning diameter

m

≤18

Min. Ground clearance

mm

237

Max. Speed

km/h

≥90

Max. Grade ability

%

≥36.7

Engine model

-

CA4DF3-14E3F

Engine emission

ml

4752

Rated power

kw/r/min

105/2500

Max. Torque

n·m/r/min

450/1400

Fuel type

Diesel

Standard of emission

EN = 2 \* ROMAN III

Tire size

8.25-20(option 8.25R20)

Persons

3


  • Size:  37m3
  • Place of Origin:  Shenyang
  • Brand Name:  N.Traffic
  • Model Number:  SQZ2504PDC
  • Weight: 4880.000 kg
