- Size: 37m3
- Place of Origin: Shenyang
- Brand Name: N.Traffic
- Model Number: SQZ1507N-QA
- Weight: 4880.000 kg

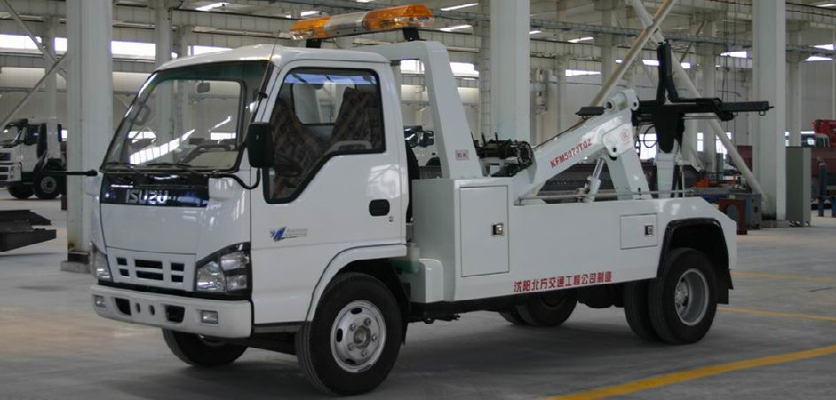

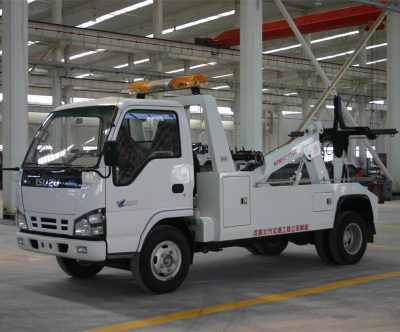

KaiFan Light-duty N Series (ISUZU) Road Wrecker
I.Working Range
KFM5074TQZ Roadwrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
II. Parameters
Items | Unit | Value | |
Boom Structure | Rated towing weight | kg | 7200 |
Rated lifting weight | kg | 3000 | |
Max. Lifting weight of full extension boom | kg | 1500 | |
Effective length of boom | mm | 1800 | |
Extension traveling of boom | mm | 650 | |
Folding angle of boom | ° | 98 | |
Under lift Structure | Rated hanging weight | kg | 1500 |
The height from hook to the ground | mm | 3500 | |
Numbers of winch | piece | 1 | |
Max. Pulling power of winch | kg | 4000 | |
Diameter of steel cable | mm | 10 | |
Length of steel cable | m | 25 | |
Min. Speed of steel cable | m/min | 4.5 | |
Rotation angle | ° | 32 | |
Vehicle Parameters | External dimension | mm | 5830×1980×2425 |
Chassis model |
| NKR77PLPACJAY | |
Axle base | mm | 3815 | |
Drive |
| 4×2 | |
The whole weight of empty load | kg | 4075 | |
Load of front axle of empty load | kg | 2000 | |
Load of rear axle of empty load | kg | 2075 | |
The whole weight of full load | kg | 7205 | |
Load of front axle of full load | kg | 2500 | |
Load of rear axle of full load | kg | 4705 | |
Wheel base (front/rear axle) | mm | 1504/1425 | |
Front suspension | mm | 1015 | |
Rear suspension | mm | 790 | |
Approach angle | º | 24 | |
Departure angle | º | 26 | |
Min. Turning diameter | m | ≤15.2 | |
Max. Speed | km/h | 100 | |
Grade ability | % | 30 | |
Min. Ground clearance | mm | 190 | |
Engine model | - | 4KH1-TC | |
Rated power | kw/r/min | 96/3400 | |
Max. Torque | n·m/r/min | 280/1700 | |
Engine emission | L | 2.999 | |
Fuel type |
| Diesel | |
Standard of emission |
| EN = 2 \* ROMAN III | |
Tire size |
| 7.00-16(option7.50-15,7.50R15,7.00R16) | |
Persons |
| 2 | |
