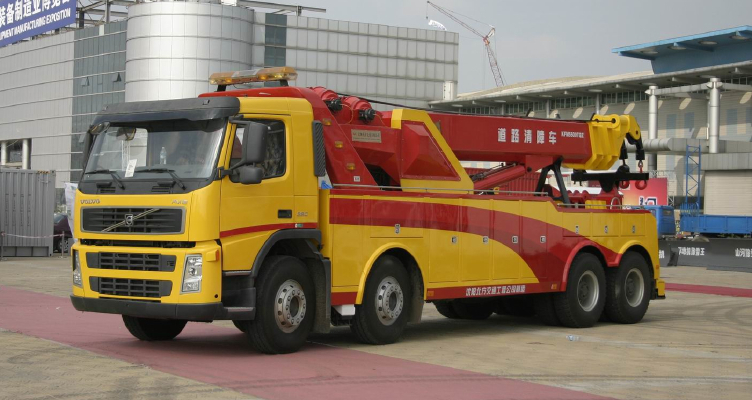

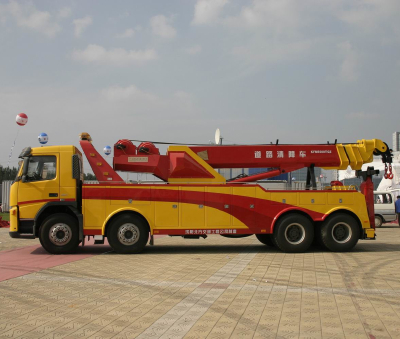

KaiFan Heavy-duty H Series (VOLVO) Road Wrecker KFM5442TQZ
I.Working Range
KFM5442TQZ Roadwrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
II. Parameters
Items | Unit | Value | |
Lifting Structure | Rated Lifting weight | kg | 13765 |
Max. Lifting weight of original place | kg | 18000 | |
Max. Lifting weight of full extension boom | kg | 8000 | |
Rated towing weight | kg | 44000 | |
Max. Designed towing weight | kg | 60000 | |
Effective length of boom | mm | 3350 | |
Extension traveling of boom | mm | 1700 | |
Folding angle of boom | ° | 90 | |
Under lift Structure | Max. Rated hanging weight | kg | 25000 |
The height from hook to the ground | mm | 13430 | |
Max. Extension traveling of lifting boom | mm | 6000 | |
Rotation angle | ° | 360 | |
Numbers of winch | piece | 2 | |
Rated pulling power of winch | kg | 2×15000 | |
Dia. Of steel cable | mm | 22.4 | |
Length of steel cable | m | 40 | |
Min. Speed of steel cable | m/min | 4 | |
Rotation angle | ° | 65 | |
Vehicle Parameters | External dimension | mm | 10741×2500×3366 |
Chassis model |
| FM400 84RB | |
Drive |
| 8×4 | |
Axle base | mm | 1995+4405+1370 | |
The whole weight of empty load | kg | 30040 | |
Load of front axle of empty load | kg | 14380 | |
Load of rear axle of empty load | kg | 15660 | |
The whole weight of full load | kg | 44000 | |
Load of front axle of full load | kg | 9000/9000 | |
Load of rear axle of full load | kg | 13000/13000 | |
Wheel base (front/rear axle) | mm | 2019/1834 | |
Front suspension | mm | 1362 | |
Rear suspension | mm | 935 | |
Approach angle | º | 16.6 | |
Departure angle | º | 20 | |
Min. Turning diameter | m | 24.6 | |
Min. Ground clearance | mm | 306 | |
Max. Speed | km/h | 99 | |
Grade ability | % | 30 | |
Gas consumption per one hundred miles(diesel oil) | L | 35.4 | |
Engine model | - | D13 | |
Engine emission | L | 12.8 | |
Rated power | kw/r/min | 400/294/1400 ～ 1800 | |
Torque | n·m/r/min | 2000/1050 ～ 1400 | |
Fuel type |
| Diesel | |
Standard of emission |
| EN = 2 \* ROMAN III | |
Tire size |
| 315/80R22.5 | |
Persons |
| 3 | |
