- Size: 37m3
- Place of Origin: Shenyang
- Brand Name: N.Traffic
- Model Number: KFM5079JGK10S
- Weight: 4880.000 kg

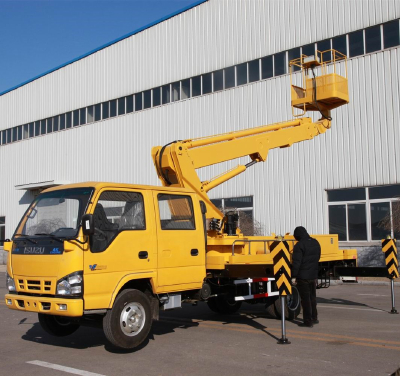

KaiFan Brand 18M Telescopic Boom (ISUZU) Aerial Working Platform
I.Working Range
KFM5062JGK10S Telescopic Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on. The structure type is telescopic boom and the lifting boom is flexible, convenience and performance with the negative point, more suitable for narrow site conditions or other special operations.
II. Parameters
Bulletin No. | KFM5079JGK10S | |
External dimensions （ mm ） | 8010×2000×2950 | |
Structure type | Three-section telescopic boom | |
Working Cage | Internal size （ mm ） | 1100×700×1100 |
Rated loading （ kg ） | 200 （ or 2 persons ） | |
Max. Working height （ mm ） | 18000 | |
Max. Height from ground （ mm ） | 16300 | |
Max. Working radius （ mm ） | 12000 | |
Rotation angle （ º ） | ±90° | |
Working Boom | Lifting angle of main boom （ º ） | -13—78° |
Boom rack rotation angle （ º ） | 360 | |
Outrigger | Vertical span （ mm ） | 3930 |
Horizontal span （ mm ） | 3980 | |
Adjustment | Single adjustable | |
