- Size: 37m3
- Place of Origin: Shenyang
- Brand Name: N.Traffic
- Model Number: KFM5072JGK -GKZ-18Q
- Weight: 4880.000 kg

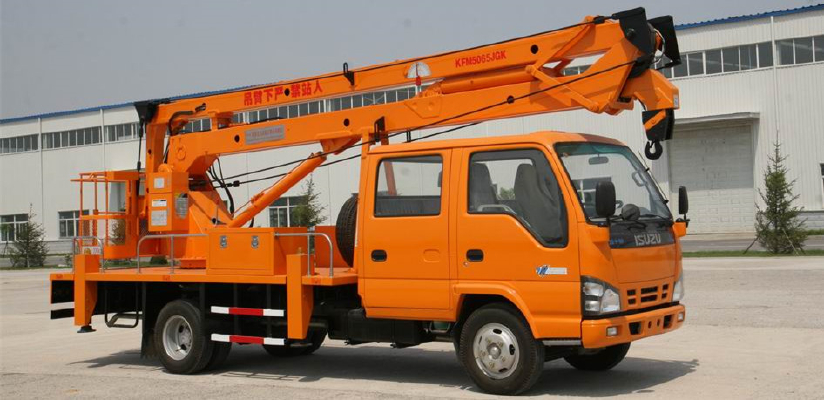

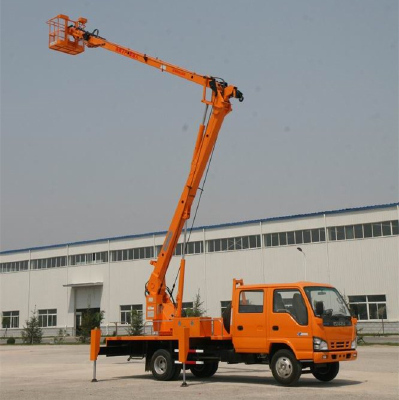

KaiFan Brand 18M Articulated Boom (JMC) Aerial Working Platform Technical Parameters
I.Working Range
KFM5072JGK Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on..
II. Parameters
Type | GKZ-18Q | |
External dimensions ( mm ) | 8110×2000×2980 | |
Structure type | Three-section articulated boom | |
Working Cage | Internal Size ( mm ) | 1100×600×1100 |
Rated loading ( kg ) | 200 ( or 2 persons ) | |
Max. Working height ( mm ) | 18000 | |
Max. Height from ground ( mm ) | 16300 | |
Max. Working radius ( mm ) | 8670 | |
Working radius when doing the highest height ( mm ) | 2270 | |
Working Boom | Max. Raising angle of lower boom ( º ) | 70 |
Max. Raising angle of upper boom ( º ) | 70 | |
Max. Raising angle of jib ( º ) | 90 | |
Boom rack ration angle ( º ) | 360 | |
Outrigger | Vertical span ( mm ) | 3550 |
Horizontal span ( mm ) | 3600 | |
Traveling of vertical outrigger ( mm ) | 500 | |
Adjustment | Single adjustable | |
Lifting | Rated lifting weight ( kg ) | 995 |
Rated lifting height ( mm ) | 9060 |
