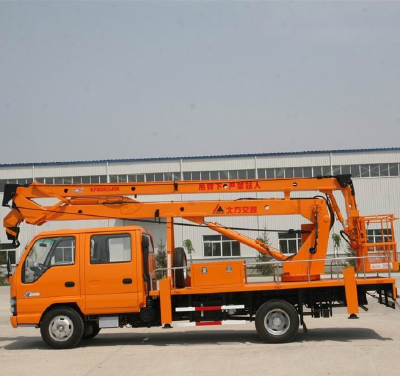

KaiFan Brand 16M Articulated Boom (ISUZU) Aerial Working Platform

KaiFan Brand 16M Articulated Boom (ISUZU) Aerial Working Platform

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 500 Units per Month
  • Port: China port
  • Payment Terms: L/C,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:1997-05-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  37m3
  • Place of Origin:  Shenyang
  • Brand Name:  N.Traffic
  • Model Number:  KFM5065JGK -GKZ-16Q
  • Weight: 4880.000 kg

KaiFan Brand 16M Articulated Boom (JMC) Aerial Working Platform Technical Parameters

I.Working Range

KFM5065JGK Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on..

II. Parameters

Type

GKZ-16Q

External dimensions mm

7300×2000×2970

Structure type

Three-section articulated boom

Working Cage

Internal size mm

1100×600×1100

Rated loading kg

200 or 2 persons

Max. Working height mm

14000

Max. Height from ground mm

14300

Max. Working radius mm

7700

Working radius when doing the highest height mm

3220

Working Boom

Max. Raising angle of lower boom º

70

Max. Raising angle of upper boom º

70

Max. Raising angle of jib º

90

Boom rack ration angle º

360

Outrigger

Vertical span mm

3200

Horizontal span mm

3600

Traveling of vertical outrigger mm

450

Adjustment

Single adjustable

Lifting

Rated lifting weight kg

995

Rated lifting height mm

8630


  • Size:  37m3
  • Place of Origin:  Shenyang
  • Brand Name:  N.Traffic
  • Model Number:  KFM5065JGK -GKZ-16Q
  • Weight: 4880.000 kg
