China new brand KaiFan Brand 50T Truck Crane for sale

China new brand KaiFan Brand 50T Truck Crane for sale

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 500 Units per Month
  • Port: China port
  • Payment Terms: L/C,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:1997-05-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  37m3
  • Place of Origin:  Shenyang
  • Brand Name:  N.Traffic
  • Model Number:  QY50G
  • Weight: 4880.000 kg

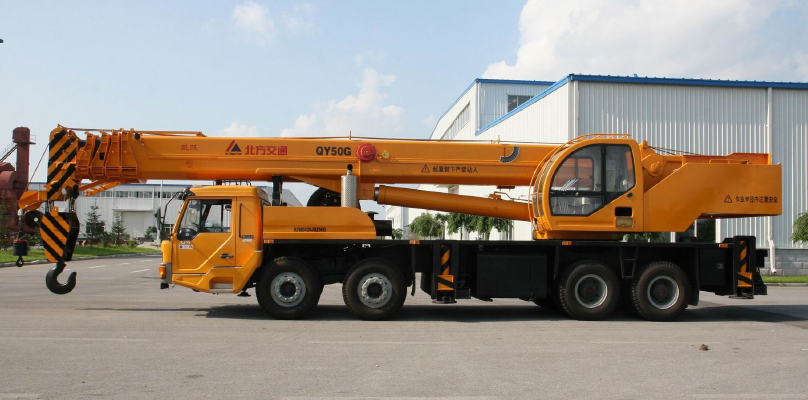

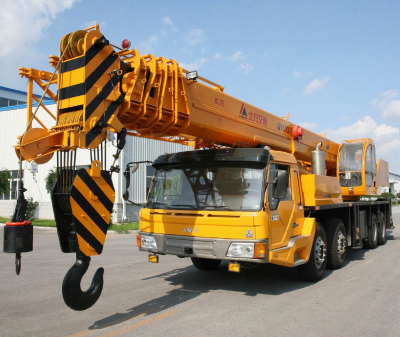

KaiFan Brand 50T Truck Crane

I.Working Range

“KAI FAN” Brand KFM5426JQZ50G(QY50G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 50t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.

II. Parameters

Items

Unit

Value

Working Performance  Parameters

Max. Rated lifting weight

kg

50000

Max. Lifting force of the basic boom

kn.m

1764

Max. Lifting force of the longest main boom

kn.m

850.6

Max. Lifting height of the basic boom

m

11.3

Max. Lifting height of the main boom

m

41.8

Max. Lifting height of the jib

m

58

Working Speed

Max. Speed of the single rope

m/min

118

Extending time of the lifting boom

s

190

Lifting time of the lifting boom

s

95

Turning speed

r/min

0-2

Traveling Parameters

Max. Travelling speed

km/h

70

Max. Grade ability

%

30

Min. Turning radius

m

12

Min. Ground clearance

m

0.265

Approaching angle

°

17.5

Departure angle

°

11

Weight Parameters

The whole weight

kg

41870

Load of the front axle

kg

7885/7885

Load of the rear axle (double axles)

kg

26100

Dimension Parameters

External dimensionlength*width*height

mm

14000×2790×3410

Vertical span of outrigger

m

5.50

Horizontal span of outrigger

m

7.04

Length of main boom

m

11.141.5

Length of vice boom

m

9.5-16

Elevation of main boom

°

080

Chassis

Model

TAZ5423J

Engine model

WD615.95 (ENⅢ)

Rated power/speed

kw/r/min

247/2200

Max. Torque/rotate speed

n.m/r/min

1350/13001600
