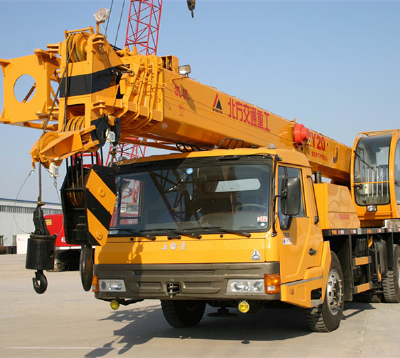

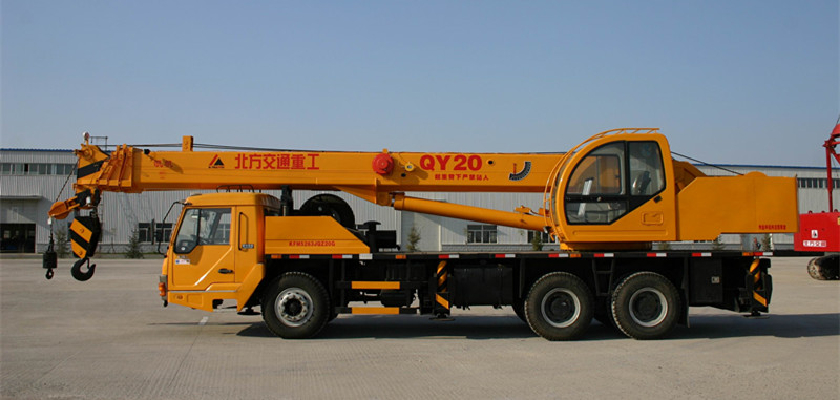

China new brand KaiFan Brand 20T Truck Crane for sale

China new brand KaiFan Brand 20T Truck Crane for sale

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 500 Units per Month
  • Port: China port
  • Payment Terms: L/C,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:1997-05-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  110m3
  • Place of Origin:  Shenyang
  • Brand Name:  N.Traffic
  • Model Number:  QY20G
  • Weight: 30000.000 kg

China new brand KaiFan Brand 20T Truck Crane for sale

I.Work Range

“KAI FAN” Brand KFM5263JQZ20G(QY20G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 20t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.

II.Main Parameters

Items

Unit

Value

Working Performance  Parameters

Max. Rated lifting weight

kg

20000

Max. Lifting force of the basic boom

kn.m

835

Max. Lifting force of the longest main boom

kn.m

460

Max. Height of the main boom

m

32.3

Max. Height of the jib

m

40.1

Max. Speed of the single rope

m/min

120

Working Speed

Extension time of the lift boom

s

≤80

Lifting time of the lift boom

s

≤50

Turning speed

r/min

0 2

Traveling Parameters

Max. Traveling speed

km/h

75

Max. Grade ability

%

26

Min. Turning radius

m

10

Min. Ground clearance

m

0.27

Approaching angle

°

16

Departure angle

°

11

Weight Parameters

The whole weight

kg

26070

The front axle weight

kg

6850

The middle-rear axle weight

kg

19220

The whole weight of full load

kg

26200

The front axle weight of full load

kg

6990

The middle-rear axle weight of full load

kg

19210

Dimension Parameters

External dimension length×width×height

mm

12550×2500×3300

Vertical span of outrigger

m

4.91

Horizontal span of outrigger

m

5.63

Length of main boom

m

10~31

Length of vice boom

m

8

Elevation of boom

°

-2~80

Chassis

Model

TAZ5263J

Engine model

WP6-240

Rated power/speed

kw/ r/min

176/2500

Max. Torque/rotate speed

n.m/ r/min

800/1300-1600
