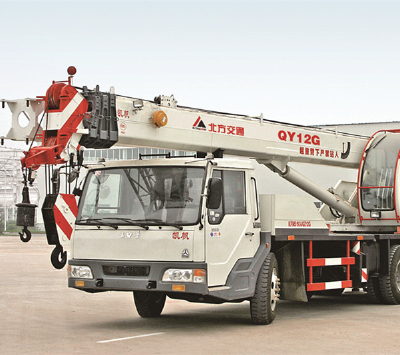

China new brand KaiFan Brand 12T QY12G Mobile Truck Crane for sale

China new brand KaiFan Brand 12T QY12G Mobile Truck Crane for sale

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 500 Units per Month
  • Port: China port
  • Payment Terms: L/C,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:1997-05-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  110m3
  • Place of Origin:  Shenyang
  • Brand Name:  N.Traffic
  • Model Number:  QY12G
  • Weight: 30000.000 kg

China new brand KaiFan Brand 12T QY12G Mobile Truck Crane for sale

I.Work range

“KAI FAN” Brand KFM5193JQZ12G(QY12G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 12t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.

II.Main Parameters

Items

Unit

Value

Working Performance  Parameters

Max. Rated lifting weight

kg

12000

Max. Lifting force of the basic boom

kn.m

450

Max. Lifting force of the longest boom

kn.m

240

Max. Height of the basic boom

m

10.5

Max. Height of the main boom

m

29.2

Max. Height of the jib

m

35.6

Working Speed

Turning speed

r/min

0 2

Extension time of the full boom

s

75~60

Lifting time of the lift boom

s

50~37

Extension time of horizontal tank outrigger

s

28~40

Extension time of vertical tank outrigger

s

27~40

Traveling Parameters

Max. Traveling speed

km/h

75

Max. Grade ability

%

25

Min. Turning diameter

m

22

Min. Ground clearance

mm

255

Approaching angle

°

17

Departure angle

°

10.5

Weight Parameters

The whole weight of full load

kg

19300

Load of the front axle

kg

5400

Load of the middle-rear axle

kg

13900

The whole weight

kg

19170

Dimension Parameters

External dimension length×width×height

mm

12060×2494×3160

Vertical span of outrigger

mm

4750

Horizontal span of outrigger

mm

4990

Length of main boom

m

28.16

Elevation of main boom

°

-2~80

Length of vice boom

m

6.8

Chassis

Model

TAZ5193J

Engine model

WP6.210

Rated power/speed

kw/ r/min

155/2300

Max. Torque/rotate speed

n.m/ r/min

750/1400~1600



  • Size:  110m3
  • Place of Origin:  Shenyang
  • Brand Name:  N.Traffic
  • Model Number:  QY12G
  • Weight: 30000.000 kg
